PRG304E

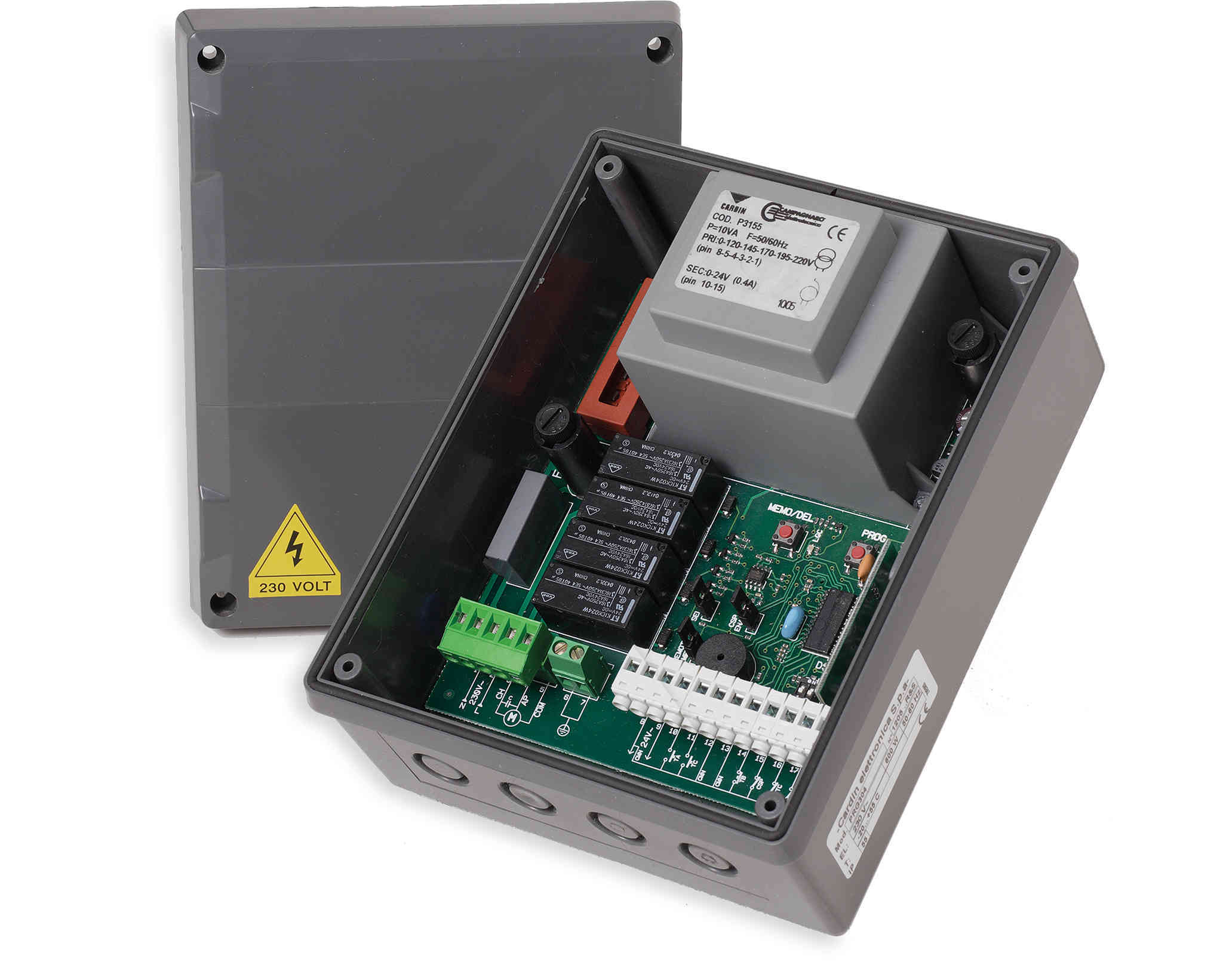

PRG304E – ELECTRONIC MICROPROCESSOR CONTROL UNIT FOR 230V MOTORS

PRG304E  – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR TWO 230V MOTORS
WITH MAXIMUM POWER YIELD 650W.
ELECTRONIC CONTROL UNIT, BASIC VERSION
Digital work time control. Command inputs: TA, TC and TB. Security inputs:
photocells, safety edge (N.C. contact or 8.2 kΩ), digital safety edge.
Output for a courtesy light 230Vac 300W and for a led warning light. The
appliance is supplied with a S449, 433MHz, FM decoder.
Suitable for the control of automatic rolling shutters.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

PRG304E ELECTRONIC CONTROL UNIT PROGRAMMER
FOR THE CONTROL OF TWO MOTORS 230V

MAINS POWER SUPPLY 230Vac
MOTOR OUTPUT 230Vac
PROTECTION GRADE IP55
FIREPROOFING GRADE V2
INTERFACE FOR A STANDARD SLOT-IN RADIO CARD
COMMAND INPUTS: TA, TC, TD, TB.
ELECTRONIC PROGRAMMERS
LED DISPLAY
Electronic devices  PRG304E control unit for the control of automatic opening systems.
Specially studied and designed for this type of use, these Cardin programmers are fitted with digital
“step by step” time programming which is easily carried out in real time while the
gate is moving thus reducing the installation time.
The simplified programming method uses one or two buttons (depending on the
version) allowing all functions to be programmed rapidly.

Version two gate leaves

In the double gate/door version the programming of PRG304E procedure is guided by a LED display.
The complete range of products have been designed and constructed in
accordance with the safety standards in force and feature automatic, semiautomatic,
manual and remote control functions (the product takes a Cardin
standard slot-in receiver card).
Electronic devices for the control of automatic opening systems with one or two
gate leaves: sliding gates, hinged gates and garage doors powered by 230Vac.
The complete range of  programmers simplifies and solves all possible installation
problems. The high product-quality level of PRG304E control unit together with accurate design and a
selective choice of materials allows trouble free operation and maximum reliability
under all kinds of working conditions.

PRG304E ACCESSORIES

RSQ504OC2 – RSQ508OC2
RSQ504OC2 – RSQ508OC2 433 or 868MHz RECEIVERS to control the gates in remote control

ADDITIONAL FUNCTION CARD
Optional card that allows the PRG304E control unit to extend the functions of the control units:
– Timer-controlled lamp 230Vac – 500W
(electric lock or an electric brake can be fitted as an alternative);
– 8,2kΩ safety edge management.

CABLE GLANDS KIT
Cable glands 4 x Ø16mm.
