PARKLINE

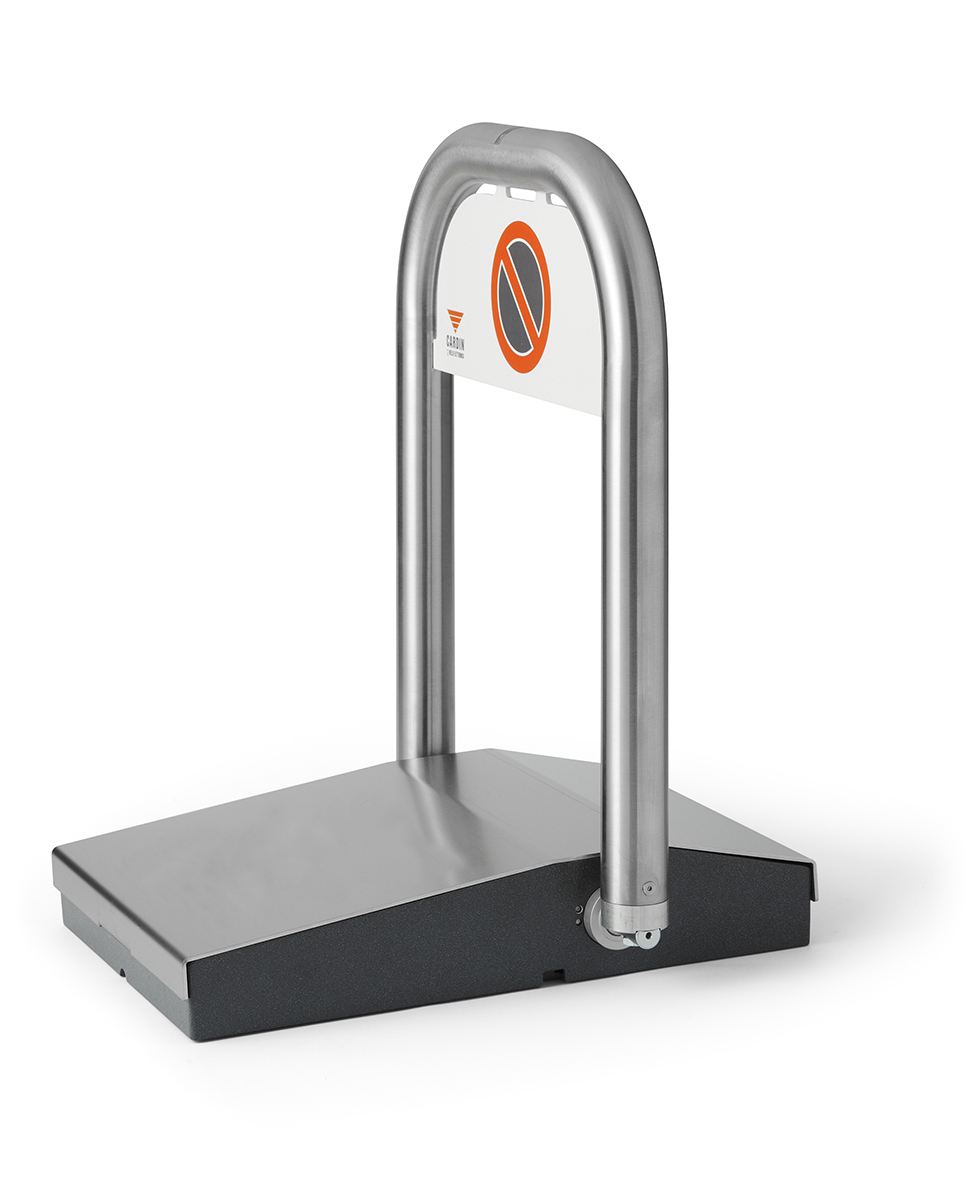

PARKLINE – PARKING SPACE PROTECTION WITH A 12V MOTOR

PARKLINE  – DOMOPARK230 CARDIN PARKING SPACE PROTECTION WITH A 24V MOTOR
The automation system consists of the PARKLINE parking space protection plus:
– electronic programmer;
– built-in S504 receiver “433MHz” FM ROLLING CODE;
– one S504 pre-coded two-channel transmitter;
– buffer batteries.
Parking space protection with external battery charger powered from the mains or battery.
The built-in control unit controls the battery charge so as to guarantee continuity of operation even
without a power supply.
Parkline can operate up to 4 months without being connected to a mains power supply.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

SELF-POWERED ELECTROMECHANICAL PARKING PLACE PROTECTION CARDIN PRO SERIES PL

The PL (Parking Line) series consists of two parking space protection devices
PARKSUN and PARKLINE cardin or DOMOPARK230 which stand out from other similar products for their
robustness and completely automatic electrical movement.
Simple and practical to operate thanks to the remote control included in the system,
a stainless steel arch rises up to prevent non authorised vehicles from using your
personal parking space.

Both models are powered by heavy duty, long-life buffer batteries.
PARKLINE CARDIN parking safe model does not require connection to external power sources as the batteries
are recharged by an in-built solar panel.
The PARKLINE PARKING PROTECTION cardin model requires an external battery charger powered by the mains.
The PARKSUN model is fitted with a solar panel and a vehicle presence detector
which will automatically raise the arc when the vehicle leaves the parking place.

PARKLINE Cardin control unit

The control panel has an in-built state-of-the-art S504 radio receiver card with 128 bit cryptography,
“433MHz” FM ROLLING CODE and the possibility of memorising up to 1000 user codes.
Various solutions have been adopted in the PARKLINE CARDIN systems in order
to guarantee the safety and security of people and materials.
foremost among which is the electronic sensor that inverts the movement of the arch whenever it
encounter an obstacle.
A mechanical shock absorbing device that reduces the effect of eventual crashes and bangs even when not in movement.

The device PARKLINE CARDIN parking protection safe, even easy, is fitted with a key-operated manual release mechanism.
Rapid installation:
– does not require particular tools;
– for standard operation it does not require programming and travel limit setting;
– the code of the radio control transmitter supplied with the device is already stored in the control panel.

TECHNICAL SPECIFICATIONS DOMOPARKE PARKLINE CARDIN PARKING PROTECTION

Motor power supply                                                    12 V
Max. motor current                                                     3 A
Motor power                                                               40 W
Opening time                                                              8 sec
Encoder                                                                      YES
Grease lubricant                                                          TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit
Model                                                                         D112
Power supply                                                              12 V
Max. current                                                               3 A

GENERAL DATA
Photovoltaic panel power                                              5 W
Battery charger to 230 V                                              NO
Working temperature                                                   -20 +55 °C
Protection level                                                           IP 54
Weight                                                                        19 Kg

BUILT-IN RECEIVER CARD (S504)
Reception frequency                                                   MHz       433.92
Number of channels / Number of functions                  No         4 /1
Number of stored codes                                             No         1000

OVERALL DIMENSIONS OF PARKLINE PARKING PROTECTION CARDIN
470 x 750mm, height 620mm (94mm lowered arch)

SELF-POWERED ELECTROMECHANICAL PARKING PLACE PROTECTION

The PL (Parking Line) series consists of two parking space protection devices
PARKSUN and PARKLINE which stand out from other similar products for their
robustness and completely automatic electrical movement. Simple and practical
to operate thanks to the remote control included in the system, a stainless steel
arch rises up to prevent non authorised vehicles from using your personal parking
space.
Both models are powered by heavy duty, long-life buffer batteries. The PARKSUN
model does not require connection to external power sources as the batteries
are recharged by an in-built solar panel, while the PARKLINE model requires an
external battery charger powered by the mains. The PARKSUN-SR model is fitted
with a solar panel and a vehicle presence detector which will automatically raise
the arc when the vehicle leaves the parking place. The control panel has an in-built
state-of-the-art S504 radio receiver card with 128 bit cryptography, “433MHz”
FM ROLLING CODE and the possibility of memorising up to 1000 user codes.
Various solutions have been adopted in the PARKING LINE systems in order
to guarantee the safety and security of people and materials, foremost among
which is the electronic sensor that inverts the movement of the arch whenever it
encounter an obstacle and a mechanical shock absorbing device that reduces the
effect of eventual crashes and bangs even when not in movement. The device is
fitted with a key-operated manual release mechanism.
Rapid installation:
– does not require particular tools;
– for standard operation it does not require programming and travel limit setting;
– the code of the radio control transmitter supplied with the device is already
stored in the control panel.
