KT-HLXCORE230T KIT

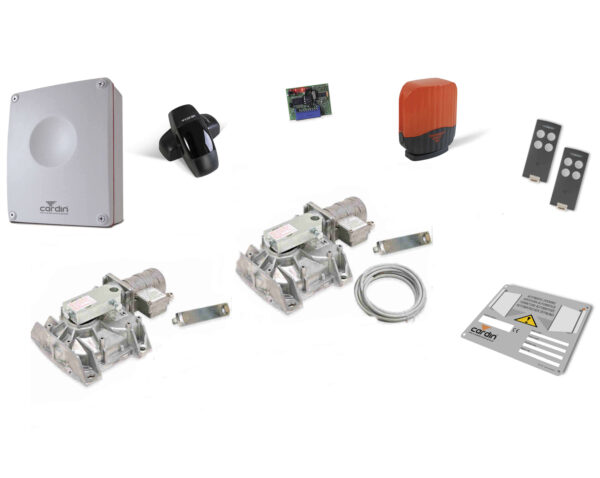

KT-HLXCORE230T- COMPLETE UNDERGROUND AUTOMATION HLXCORE230T KIT FOR SWING GATES

KT-HLXCORE230T KIT  : COMPLETE UNDERGROUND AUTOMATION KIT FOR SWING GATES ENCODER 230V PESO MAX. 550KG

USE of KT-HLXCORE230T KIT
Particularly suited for installation that do not allow column installations or where
the automation has to be completely hidden. For gates with a maximum length
of 3m, maximum weight 350kg.

HLXCORE230 : 2 SELF-LOCKING ELECTROMECHANICAL UNDERGROUND GEARED MOTORS
with an encoder-controlled 230V motor.

T600 ELECTRONI PROGRAMMER
Control unit for 1/2 motors 230 V, with encoder control, torque adjustment and slowing down.

RSQ504OC2 OPEN COLLECTOR RECEIVER
2 channels plug in receiver.

TXQ504C4 : 2 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.
ICON : LED WARNING LIGHT
24V – 230V with an in-built aerial
VEDO180 : PAIR OF PHOTOCELLS
with adjustable lens, range 25m.
TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

 EMBEDDING CASES AREN’T IN THE KIT :  HAS TO BE ORDERED SEPARATELY

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

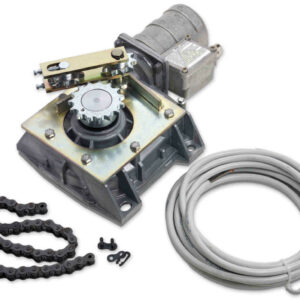

HLXCORE230 – SELF-LOCKING MOTOR WITH ENCODER 24V MAX WEIGHT. 550KG AND 3M

ELECTROMECHANICAL OPERATOR HL251KS9
– 230V MOTOR FOR GATES
– 110°  MAXIMUM OPENING ANGLE
– GATE MAX 3M
– GATE MAX 550KG
Self-locking operator:
– fitted with a crank rod transmission system;
– supplied with a 6m connection cable;
– embedding case and Cardin electronic programmer to be ordered separately.

HLXCORE230 – UNDERGROUND ELECTROMECHANICAL MOTOR 230V

The automation is made up of a series of components consisting of an electronic
programmer, one or two sealed self-locking operators complete with embedding
cases and a special connecting cable. The robust and reliable electromechanical
operator guarantees optimum performance under all working conditions and its
system of ball bearing balanced pivoting levers guarantees regular and silent
running.

The hot dip galvanized or stainless steel embedding cases are guaranteed to
remain rust free throughout time.
Particularly suited for installations that do not allow column installations or where
the automation has to be completely hidden.
The units do not feature on board electronics and we advise you to use a Cardin
electronic programmer:
– PRG230M2 for 1 or 2 230V motors;
– T624 for 1 or 2 230V motors;

On the 24V model gate position is encoder controlled and self-programming
thus reducing installation times to a minimum and optimising the programming
procedure. Repositioning takes place automatically whenever foreign objects get
in the way of the gate as it is moving.

The electronic control unit is completed by the anti-crush and “soft start” and “soft
stop” functions. The control electronics also comes complete with a display that
monitors the programming stages and counts the number of manoeuvres carried
out by the machine.

The irreversible reduction system guarantees the blocking of the gate in the closed
position.
The manual emergency movement system is easy to operate using a personalised
“locking-unlocking” key and rearming is automatic.

SELF-PROGRAMMING ECU FOR HLXCORE230

Programmer for the control of two motors.
Motor power supply 230Vac.
Maximum power yield for two motors 470 + 470 W.
The appliance is fitted with an interface for the insertion of a standard Cardin
radio receiver card. For more information turn to page 174.

TECHNICAL FEATURES OF THE UNDERGROUND ACTUATOR HLXCORE230

Motor power supply                                          V 24VDc
Electrical input                                                 A 2
Power input                                                     W 60
Duty cycle                                                        % 70
Opening time 90°                                              s 22
Opening time 110°                                              s 27
Openin    g time 140°                                          s 35
Opening time 180°                                              s 44
Maximum torque                                                Nm 170
Protection grade                                                 IP 67

PRG230M2 : SELF-PROGRAMMABLE ELECTRONIC PROGRAMMER

T600 : SELF-PROGRAMMABLE ELECTRONIC PROGRAMMER

EMBEDDING CASES
complete with connection lever and adjustable mechanical travel limits.
All versions are fitted with a stainless steel cover.
HLBOX – Hot dip galvanized anti-rust treatment, manual release mechanism
to be ordered separately.
HLBOXI – Structure completely in stainless steel, manual release mechanism
to be ordered separately.
HLBOXC – Hot dip galvanized anti-rust treatment, release mechanism with a
personalised key included in the embedding case lever unit (not compatible
with ACCHL360).

SBLHL : MANUAL RELEASE MECHANISM
with a personalised key for HLBOX-HLBOXI

SBLSHL : MANUAL RELEASE MECHANISM
activated by means of a lever for HLBOX-HLBOXI

ACCHLXCORE230 360 : ACCESSORY FOR 360° OPENING
