HLBOXC

HLBOXC : HOT-GALVANIZED FOUNDATION GEAR MOTOR IN CATAPHORESIS + SBLSHL RELEASE WITH LEVER

HLBOXC Foundation box or HEMBEDDED CASE for underground electromechanical gearmotor 24 V 230 V
ideal for swing gates up to 3 meters.
Equipped with encoder and easy release.
Safe thanks to the precision and sensitivity of the encoder and to the slowdowns in opening and closing.
Practical thanks to the control unit with quick connection and self-learning receiver.
Adjustable limit switches integrated in the case.
Reliable with perfect watertightness and solid and robust mechanics.

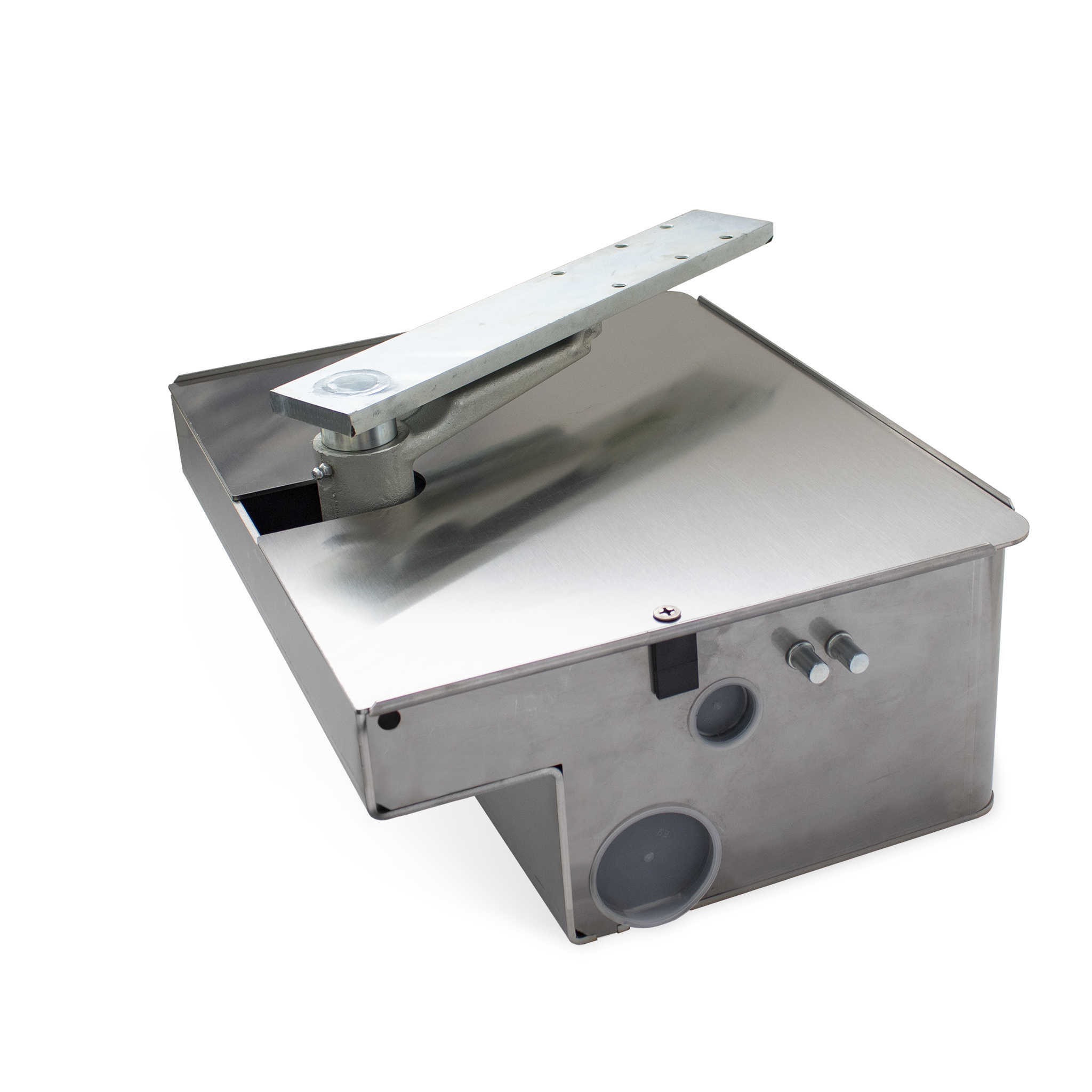

HLBOXC EMBEDDED CASE
Complete with connection lever and adjustable mechanical travel limits.
Foundation box in hot-dip galvanized cataphoresis complete with connection
levers and mechanical stops adjustable in opening and closing.

+ SBLSHL Release with lever for HLBOX or HLBOXI foundation boxes
All versions are fitted with a stainless steel cover.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

UNDERGROUND AUTOMATION FOR SWING GATES SERIES HL

The automation is made up of a series of components consisting of an electronic
programmer, one or two sealed self-locking operators complete with HLBOXC embedded
case and a special connecting cable.
The robust and reliable electromechanical operator guarantees optimum
performance under all working conditions.
Its system of ball bearing balanced pivoting levers guarantees regular and silent running.
The hot dip galvanized or stainless steel AS hlboxc embedded case are guaranteed to
remain rust free throughout time.

HLBOXC or HLBOXI HEMBEDDED CASE  particularly suited for installations that do not allow column installations or where
the automation has to be completely hidden.

The units do not feature on board electronics and we advise you to use a Cardin
electronic programmer:
– PRG230M2 for 1 or 2 230V motors;
– CC242ETOPCB – CC242EXTOPCB for 1 or 2 24V motors.

On the 24V model gate position is encoder controlled and self-programming
thus reducing installation times to a minimum and optimising the programming
procedure.
Repositioning takes place automatically whenever foreign objects get
in the way of the gate as it is moving.

The electronic control unit is completed by the anti-crush and “soft start” and “soft
stop” functions.
The control electronics also comes complete with a display that monitors
the programming stages and counts the number of manoeuvres carried
out by the machine.

The irreversible reduction system guarantees the blocking of the gate in the closed
position.
The manual emergency movement system is easy to operate using a personalised
“locking-unlocking” key and rearming is automatic . It is part of the HLBOXC embedded
case .

ACCESSORIES HLBOXC HEMBEDDED CASE

SBLHL : MANUAL RELEASE MECHANISM
with a personalised key for HLBOXC – HLBOXI HEMBEDDED CASE

SBLSHL : MANUAL RELEASE MECHANISM
activated by means of a lever for HLBOXC – HLBOXI HEMBEDDED CASE

ACCHL360 : ACCESSORY FOR 360° OPENING
