GLZEN60E

150,00 + TAX

In stock

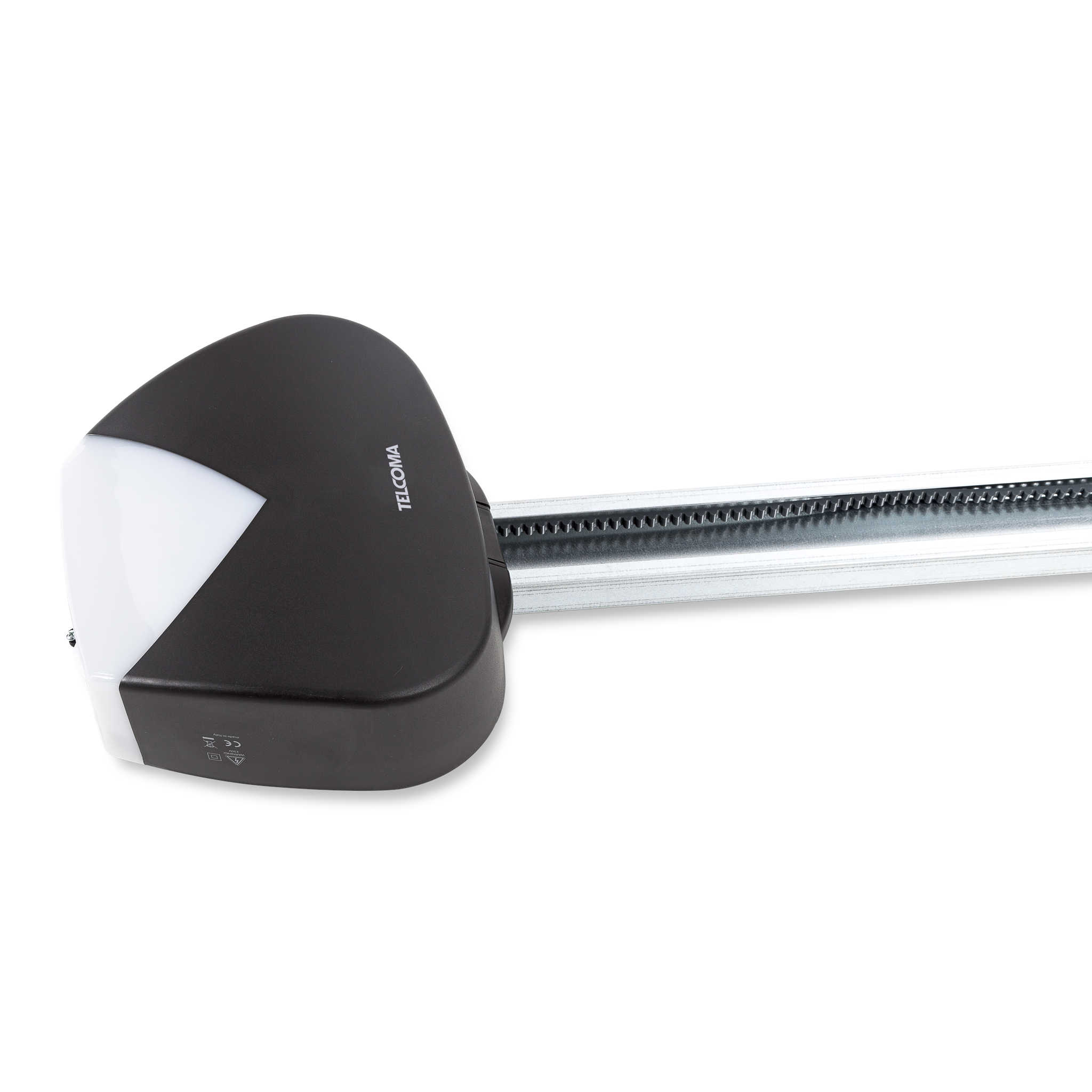

GLZEN60E - GL ZEN60E -ELECTROMECHANICAL ACTUATOR SECTIONAL DOORS

GLZEN60E / GL ZEN60E -ELECTROMECHANICAL ACTUATOR FOR SECTIONAL DOORS
Electromechanical gearmotor 24 V ideal for sectional and overhead doors, up to 12 sqm. Complete with
encoder and in-built control it is available with belt or chain transmission.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
LED courtesy light.
Practical thanks to the control unit with plug-in receiver and self-learning function and the dedicated
connection to resistive edges 8.2kΩ (EN12978)
Versatile available with guide in one single piece or in sections.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-GLZEN60E Categories: , ,

GLZEN60E -ELECTROMECHANICAL ACTUATOR SECTIONAL DOORS

GLZEN60E / GL ZEN60E -ELECTROMECHANICAL ACTUATOR FOR SECTIONAL DOORS
Electromechanical gearmotor 24 V ideal for sectional and overhead doors, up to 12 sqm. Complete with
encoder and in-built control it is available with belt or chain transmission.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
LED courtesy light.
Practical thanks to the control unit with plug-in receiver and self-learning function and the dedicated
connection to resistive edges 8.2kΩ (EN12978)
Versatile available with guide in one single piece or in sections.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Both versions have chain or belt and all
accessories preinstalled.

TUV tested and approved.

GLZEN60E / GL ZEN60E
Irreversible electromechanical gearmotor for residential use.
24 Vdc motor with encoder, max force 600 N.
Built in control unit with LED courtesy light.
ZEN GB1U
Assembled single guide with belt and accessories.
ZEN GB2U
Modular guide in 2 pieces with belt and assembled accessories.
ZEN GB3U
Modular guide in 3 pieces with belt and assembled accessories.
ZEN GB4U
Modular guide in 4 pieces with belt and assembled accessories.

TECHNICAL SPECIFICATIONS GLZEN60E / GL ZEN60E
Motor power supply                                     24 V
Max. motor current                                      4 A 5 A
Motor power                                                100 W 130 W
Thrust                                                         600 N 1000 N
Max. surface                                                9 m2 12 m2
Opening time                                               20 sec
Work cycles                                                 intensive
Encoder                                                      YES
Mechanical limiters                                       YES

TECHNICAL SPECIFICATIONS BUILT IN Control unit GLZEN60E / GL ZEN60E

Model                                                          Z124
Power supply                                               230 V
Max. current                                                0,5 A
Electronic slow down                                    YES
Compatible with Sun Power                          YES

GENERAL DATA GLZEN60E / GL ZEN60E

Working temperature                                    -20 +55 °C
Protection level                                             IP 30
Weight                                                          5 Kg 5,5 Kg
Pallet                                                           36 pcs

CHAIN-GUIDED AUTOMATION SECTIONAL DOORS CARDIN AUTOMATION SERIES GLZEN

Chain guided automation for residential sectional and counterbalanced doors up
to 12m2. An efficient and robust 24V propulsion unit with an in-built programmer
fitted with all the elements for operation under all working conditions, it slots
together with a steel chain driven transmission guide available in various lengths.
The propulsion unit is commanded by state of the art logic based on encoder
control, with deceleration in the opening and closing directions, which tracks the
movement of the door. The system is based on a self-learning programming
procedure with function setting using dip-switches.
The automation is fitted with courtesy lights and an input specifically
tailored for 8K2 safety edges.
The manual release mechanism used to detach the carriage from
the chain guide is carried out using a release cord that separates the
door from the automation. Repositioning takes place automatically
whenever foreign objects get in the way of the door as it is moving.
The electronic control unit is completed by the anti-crush and “soft
start” and “soft stop” functions.
The complete range of products have been designed and constructed
in accordance with the safety standards in force and feature automatic,
semi-automatic, manual and remote control functions.

Open collector:

The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.
Chain guide to be ordered apart.

ACCESSORIES GLZEN60E / GL ZEN60E

KSN
External release kit for overhead and sectional doors.
With coded key.

SPB24
External box with 2 batteries 12V 7Ah.

CB24
24 V battery charger. Suitable for 24 V control units.

BO
Oscillating arm designed for overhead doors.

SERIE OC2
2 channels plug in receiver.

ZEN ST2
Kit of additional fixing brackets.

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V control units.

SUPZEN
Latch bracket reinforced for heavy doors.

Additional information

Weight 15 kg
Dimensions 2,00 × 0,40 × 0,40 m
