EVO 2000T

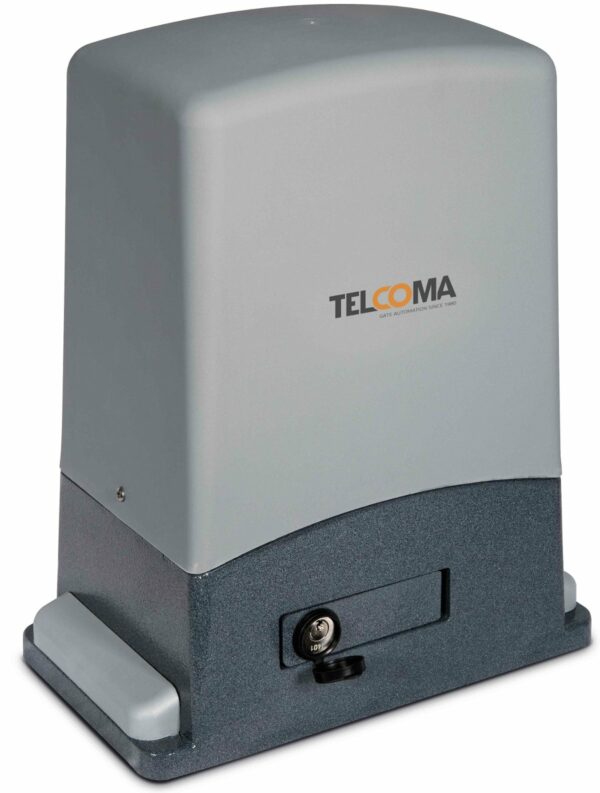

EVO2000T / EVO 2000T  : OILBATH GEAR MOTOR FOR SLIDING GATES

EVO 2000T /EVO2000T : OILBATH GEAR MOTOR FOR SLIDING GATES 2000Kg 230V 400V  THREE-PHASE
Electromechanical gearmotor in oilbath ideal for industrial sliding gates up to 2000 Kg.
Complete with encoder, magnetic limits and built built-in control unit.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Versatile fixing plate with adjustable height and depth.
Reliable with a sturdy aluminum base treated against oxidation and all moving parts in oilbath.
Constant performance over time and in any condition thanks to reduced wear&tear
and the possibility to maintain the oil at the ideal temperature using HOT (optional).
Manual release with coded lock.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

EVO 2000T
230 V electromeccanical gearmotor in oil bath.
For industrial sliding gates up to 2000kg.
Whtout control unit
Oil bath lubrication.
Complete with encoder, magnetic limits, electronic brake .
Constant performance over time and in any condition thanks to reduced
wear&tear and the possibility to maintain the oil at the ideal temperature using HOT.
The appliance is fitted with a safe and secure key-operated manual
release system.

AUTOMATION FOR SLIDING GATE TELCOMA GEAR MOTOR SERIES EVO

Electromechanical EVO2000T gear motor suitable for gate positioning control and safety
system management.
Ideal for industrial sliding gates powered by 230V or 400V THREE-PHASE.
Powerful, rapid and controlled by state of the art electronics, the gate automation
units are fitted with powerful motors backed up by a finely tuned double gear
kinematic system which reduces the stress on the motor and structure caused by
the movement of gates.

The reduction unit stator is made of die cast aluminium and contains a never
ending screw immersed in an oil bath (lubricated with grease for the EVO 2000T).
Installation, on a robust and rust proof base, is possible on any structure and the
unit may be fitted both to the right as well as to the left of the passageway.

The integrated programmer of EVO2000T gear motor allows encoder-controlled gate positioning
and selfprogramming thus reducing installation times to a minimum and optimising the
programming procedure.

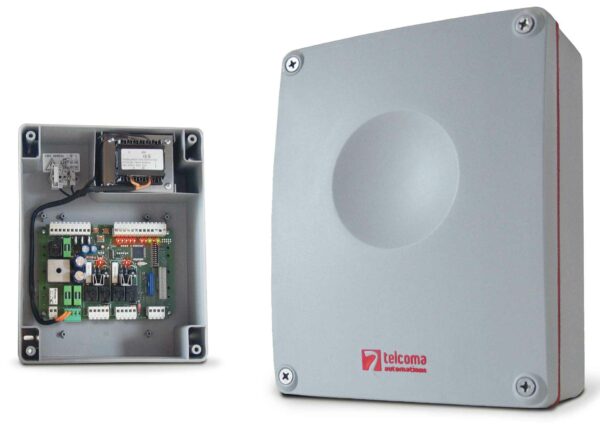

The electronic control unit of EVO 2000T is completed by the anti-crush and “soft start” and “soft
stop” functions.

TECHNICAL SPECIFICATIONS EVO 2000T

Motor power supply                         230 V 400V
Max. motor current                         4,3 A
Motor power                                   1000 W
Max. torque                                    50 Nm
Thrust                                           1400 N
Max gate weight                             2000 Kg
Actuator speed                              10 m/min
Work cycles                                   50%
Capacitor                                      20 μF
Encoder                                        YES
Magnetic limit switch                      YES
Thermal protection                        160 °C

TECHNICAL SPECIFICATIONS BUILT IN CONTROL UNIT EVO 2000T

Model                                          –
Power supply                                –
Max. current                                 –
Electronic slow down                     –

GENERAL DATA EVO 2000T
Working temperature                    -20 +55 °C
Protection level                             IP 44
Weight                                         15 Kg
Pallet                                           30 pcs

ACCESSORIES

CREM P
Plastic rack with steel core. M4 28×22 mm, complete with washers and self boring screws 6,3×25.
Pack of 10 pcs 1 m each.

CREM12
Metal rack. M4 30×12 mm, complete with weldable spacers DSC, screws M8x25 TE and washers O 8.
Pack of 4 pcs 1 m each.

KIT SBLESTEVO
External unlocking kit.

CPEVO
Base plate.

RVS
Meccanical brake for gates on sloping ground.

SERIE  EDGREOC2 / NOIREOC2 / FM400OC2
2 channels plug in receiver for control unit of SLEVO800 gear motor.

HOT
Electronic heating system with temperature sensor, for 230V motors and 400V three-phase.

TS20
Oil for EVO 2000T. 5 liters.

DSC
Weldable spacers for CREM12 and CREM8.
Pack of 30 pcs.
DAC
Screwable spacers for CREM12 and CREM8.
Pack of 30 pcs.
DAP
Screwable and adjustable spacers for CREM12 and CREM8.
Pack of 3 pcs.
