EDGE2

EDGE2 / EDGE 2 –  REMOTE CONTROLS  TRASMITTER 433,92 MHz

EDGE2 / EDGE 2 –  REMOTE RADIO CONTROL  TRASMITTER 433,92 MHz
EDGE 2E Portable transmitters 2 channels.
2-channel portable versions with code transfer function between two remote controls.
Black casing, bi-injection molded, with rubber top.
To have the maximum sensitivity and make the radio control indestructible.
Soft key ring supplied.
Compatible with TANGO SLIM series receivers (Old series in face out)

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

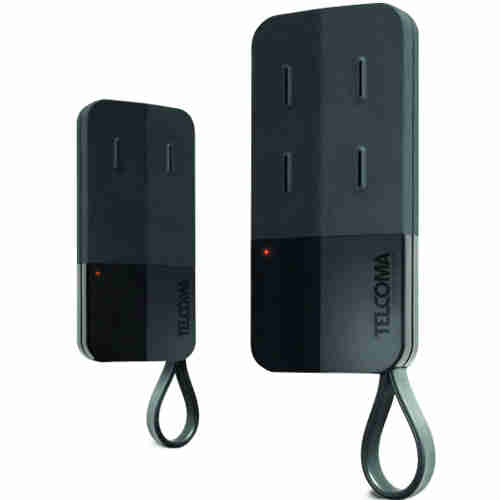

EDGE2 remote radio control
The refined design, sober and essential assures the maximum ergonomic comfort.
Edge range combines the simplicity of the fixed code to an excellent transmission range.
Special functions: self learning codes and possibility to copy codes
directly between transmitters.

EDGE RECEIVERS COMPATIBLES

EDGEOC2
DGE OC2 plug in receiver for Telcoma control units. 2 channels.
EDGERB2
EDGE RB2 compact size universal receiver 12/24 V ac/dc power supply. 2 channels.
EDGER4P
EDGE R4P external universal receiver 4 channels.
12/24 V ac/dc power supply IP44.
EDGE230R4
EDGE 230 R4 external universal receiver 4 channels.
230V power supply. IP56.

 TECHNICAL SPECIFICATIONS EDGE2 RADIO CONTROL
Power supply/battery type                                            3 V / CR2032
Absorbed current in transmitting                                   8 mA
Transmitting frequency                                                 433,92 MHz
Radiated power                                                           150 microW
Number of combinations                                              1048576
Number of functions                                                    2
Working temperature                                                   -20 +55 °C

DIGITAL QUARTZ RADIO CONTROLS WITH ROLLING CODES RADIO CONTROL SYSTEMS

433MHz – 868MHz FM ROLLING CODE
2128 CODE COMBINATIONS
REMOTE TRANSMITTER MEMORISATION
RFID: WIRELESS MEMORY
AERIAL ANS400 – ANQ800-1
AVAILABLE TRANSMITTER CHANNELS 2-4-8
AVAILABLE TRANSCEIVER CHANNELS 2-4
RANGE 100 – 150 m
MORE THAN 4 BILLION PRE-CODED TRANSMITTER CODES
An extremely secure state-of-the-art radio control system with 128 bit cryptography. The system has gathered
together a series of specific appliances under a single working protocol aimed at the remote control of automatic
and security installations. Solutions for all possible uses: control of automatic installations for gates and doors,
the command and control of automatic rolling shutters and sun blinds, the activation of alarm and access control
systems as well as the activation of all ON-OFF or timer-controlled systems. Adopting the S504 – S508 system
doesn’t just offer high levels of efficiency but also provides practicality for the user and an extremely useful and
manageable appliance for the installer.
NETWORK CONNECTIVITY
The S504 – S508 range interacts with an evolved system consisting of a server dedicated to the 3G/WF connection
by means of appliances and software for computers and smart phones.

DIGITAL ROLLING CODE TRANSMITTERS 128 BIT WITH 2/4/8 CHANNELS

The transmitters, powered by a 3-volt lithium batteries (1 x CR2032) with a range of from 100 to 150 metres, are
pre-coded in the factory with a unique identification number printed on the rear so as to allow memorisation in lots
on the receiver and can be enabled without the presence of the receivers from a remote location through the use of
a second transmitter that has already been memorised in the system. They are fitted with a key-lock function which
when selected protects the appliance from any accidental activation and automatic shut down that cuts in after at
least twenty seconds of continuous activation in order to reduce battery consumption. The bidirectional transmitters
(transceivers) receive a confirmation signal allowing you to control an operation from a remote location.
QUARTZ RECEIVERS WITH THE POSSIBILITY OF MEMORISING UP TO 1000 USER CODES
The receivers are available in all the classic Cardin versions: outdoor receivers 12-24V with display, with LCD display
and 3G/WF functions in watertight cases IP55, mini receiver units to be installed in appliances which already have
a protective casing and slot-in receiver cards for direct insertion into host appliances designed to receive them. A
code and memory programming base via USB allows the transmitters to be memorised in blocks and access to the
remote memorisation function thanks the to RFID technology fitted into the transmitters.

ACCESSORIES EDGE2 RADIO CONTROL

B3V2430
Lithium battery 3 V CR 2430.
Pack of 10 pcs.
B3V2032
Lithium battery 3 V CR 2032.
Pack of 50 pcs.
MEM16
675 codes memory.
PTE
Transmitter-holder for EDGE2  series.
