CDR841I00 – PHOTOCELLS

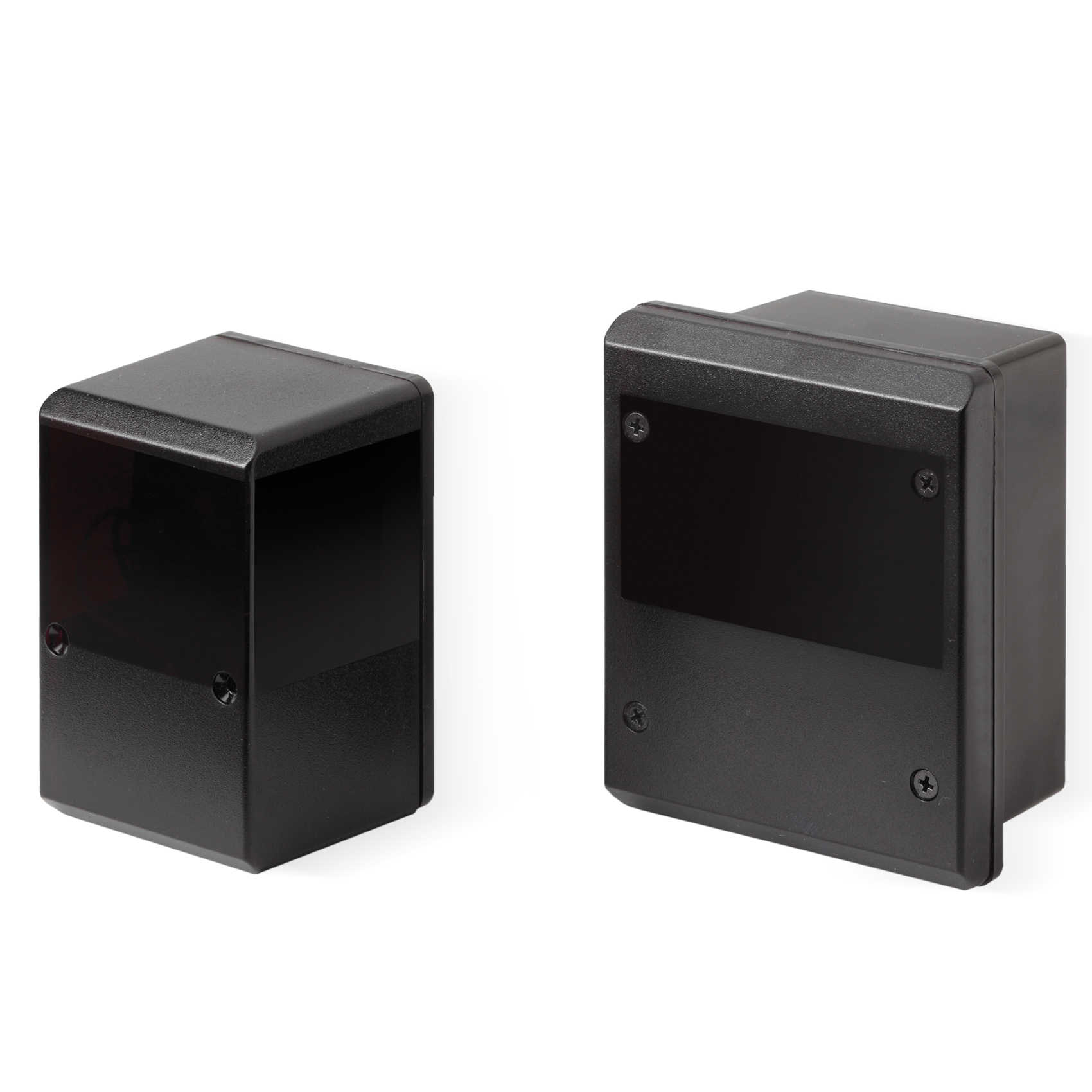

CDR841I00 – PHOTOCELL WITH  SHOCKPROOF CASE
IP55 RANGE 15M

CDR841I00 PHOTOCELL – PHOTOELECTRIC OR PHOTOCELLS
IN A SHOCKPROOF CASE IP55 15M RANGE
Maximum range 15m – 60m
Power supply 12/24Vac-dc
Protection grade IP55
Transmitter and receiver housed in a waterproof plastic case.
Double-relay with serial exchange.
Sensitivity adjustment trimmer located on the receiver (only
CDR851).

CDR841I00 PHOTOCELL – FLUSH-FITTING PHOTOELECTRIC CELLS, RANGE 15m
The kit contains a pair of flush-fitting photoelectric cells and 2 lens
covers for flush-fitting photocells.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

INFRARED BARRIERS WITH ADJUSTABLE LENSES

POWER SUPPLY 12/24Vac-dc
RANGE 15m – 60m
SENSITIVITY ADJUSTMENT CDR851 – CDR852A PHOTOCELLS
SHIELDED LENSES – GREATER IMMUNITY TO INTERFERENCE
Modulated infrared barrier consisting of a transmitter and a receiver.
It constitutes an efficient safety system for the protection of passageways or
spaces which are equipped with automatic doors or gates.
A shockproof designer case, pleasing on the eye, encloses innovative technical
solutions which make the system extremely reliable under all working conditions.
The vast range of available models meets all possible system requirements.

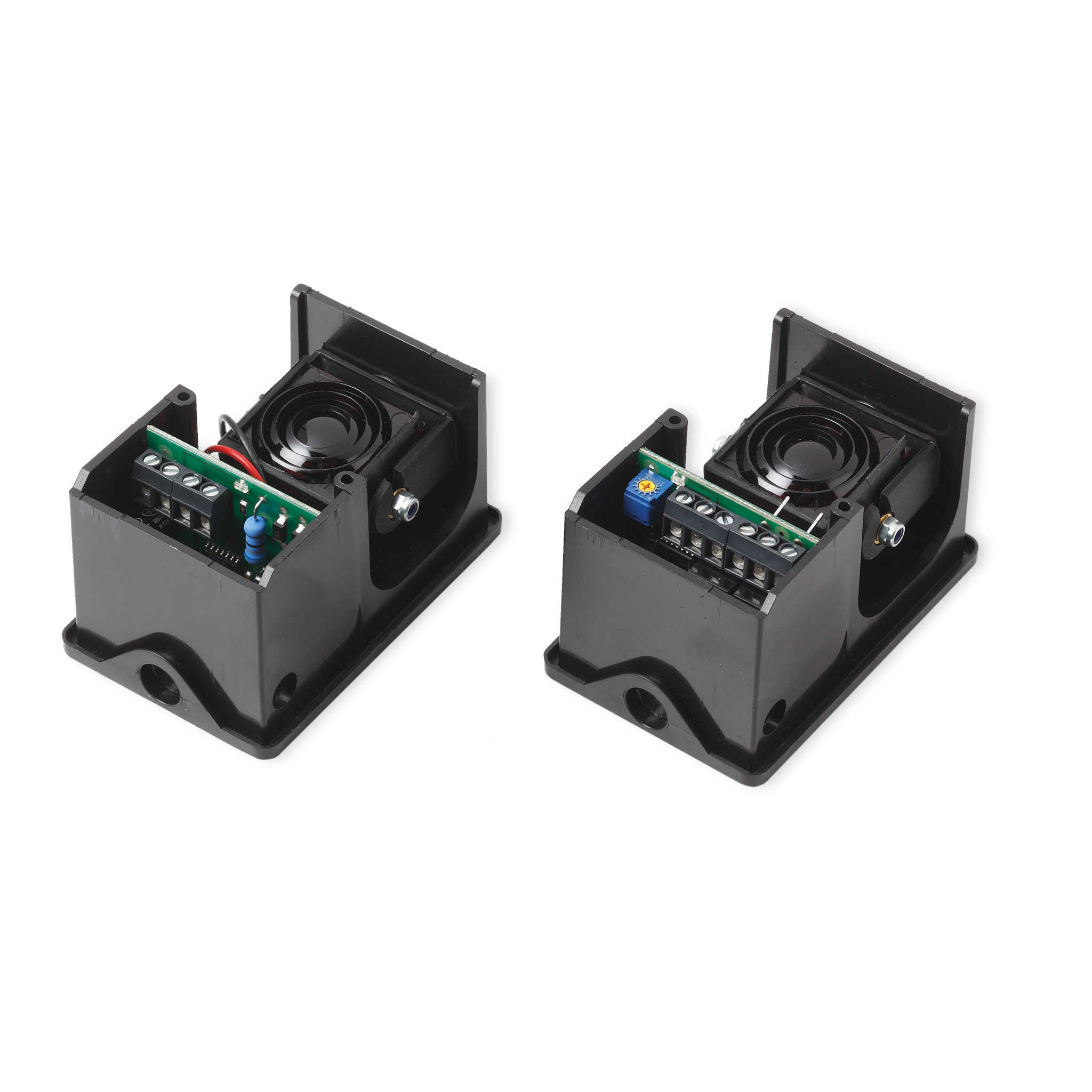

CDR841I00 PHOTOCELL Technical description

Anti-tamper aluminium case IP66 CDR842A – CDR852A PHOTOCELLS
Shockproof case IP55 CDR841 – CDR851 CDR841I00 PHOTOCELLS
Self locking adjustable lens which can be rotated horizontally through plus or
minus 90° (± 45° for the CDR841I) and vertically through plus or minus 30° with
respect to the standard installation position.
These adjustments permit lateral fitting and installations where the transmitter and
receiver are at different heights.
Double-relay with serial exchange on the receivers as requested by the standards
regarding protection against accidents for motorized gates and doors.
2 indicator LEDs:
– red – indicating that the transmitter is receiving power;
– red – (photocells out of alignment or the beam is interrupted) in the receiver.
Test point (for fine tuning) on the receiver.
Sensitivity adjustment trimmer on models CDR851 – CDR852A.
Anti-tamper function on model CDR851T.
Delayed relay – 5s not adjustable on model CDR851R.

ACCESSORIES CDR841I00

SEL50
Column in anodized aluminum 55 cm high, one module for the selector devices APRO / PHOTOCELLS and PASSO.
Pack of 2 pcs.
SEL120
Column in anodized aluminum 55 cm high, one module for the selector devices APRO / PHOTOCELLS and PASSO.
SEL120D
Column in anodized aluminum 55 cm high, one module for the selector devices APRO / PHOTOCELLS and PASSO.
