ASY 5 / ASY5 – ELECTROMECHANICAL PISTON 230/24V FOR SWING GATES

ASY5 – IS IN PHASE OUT
MOTOR  REPLACED BY THE MODEL : BLADE5

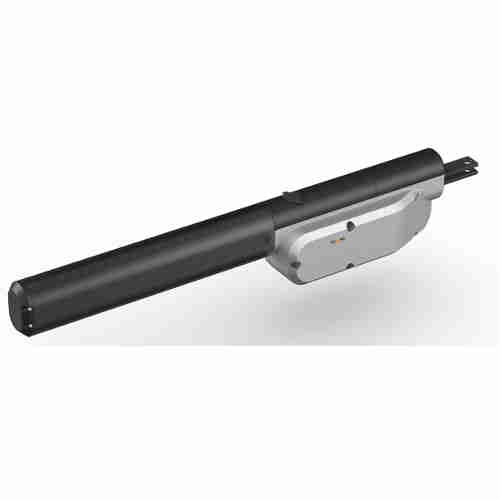

ASY5 – ELECTROMECHANICAL RAM WITH A 230V MOTOR 5M
Self-locking encoder-controlled ram with mechanical travel limits. The
geared motor locks the gate leaf in the closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets in galvanised steel.
ECU to be ordered separately T600.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

ASY5
Standard version elettromeccanical RAM 230V IRREVERSIBLE for gates max. length 5m,
max. weight 350kg.

ASY 5 / ASY5 – ELECTROMECHANICAL MOTOR 230V FOR SWING GATES
Electromechanical operator, ideal for swing gates up to 5 metres.
Equipped with encoder, release with encoded key and rear swing support.
Safe thanks to the precision and sensitivity of the encoder.
Practical electrical connections and manual release.
Versatile in all models and accessories.
Reliable with sturdy structure in corrosion treated aluminium

TECHNICAL SPECIFICATIONS  ASY5

Motor power supply                                                   230 V 24 V
Max. motor current                                                   1,6 A
Motor power                                                             370 VA
Thrust                                                                      1900 N
Max opening                                                             120°
Rod stroke                                                               350 mm 500 mm
Actuator speed                                                         16 mm/s
Work cycles                                                             30 % intensive
Capacitor                                                                10 microF
Encoder                                                                  YES
Electrical limit switches (forseen)                               optional
Mechanical limit switches (forseen)                            AP / CH
Grease lubricant                                                      TS10

TECHNICAL SPECIFICATIONS CONTRL UNIT T600/T101
Control unit for 1/2 motors 230 V, MODEL          T101/T600
Power supply                                                   230 V
Max. current                                                    6,3 A
encoder control                                               YES
torque adjustment                                           YES
slowing down.                                                 YES

GENERAL DATA ASY 5
Working temperature                         -20 +55 °C
Protection level                                  IP 44
Weight                                              10 Kg 09 Kg 11Kg
Pallet                                                40 pcs

ACCESSORIES ASY5

ELV
Vertical/horizontal electric lock 12 V.

T600
Control unit for 1/2 motors 230 V, with encoder control, torque adjustment and slowing down.

SERIE OC2
2 channels plug in receiver.

SUPBAT
Pair of brackets to fix 2 BAT12V2a to the cover
of control units box.
BAT12V2A
Battery 12V 2Ah.
CB24
24 V battery charger. Suitable for 24 V control units.

BLA
Leaf stopper.

SRA
Adjustable front bracket. Pack of 2pcs.

SRP
Adjustable rear bracket. Pack of 2pcs.

FCMASY
Mechanical opening and closing limit switches.
Pack of 4 pcs.

FCEASY
Electrical opening and closing limit switches.
Pack of 2 pcs.

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V control units.
