ARM24

ARM24- ARTICULATED FOR SWING GATES

ARM 24 – MOTOR DISCONTINUED IN PHASE OUT
REPLACED BY MOTORS BL1924ASW(DX) – BL1924LSW(SX)

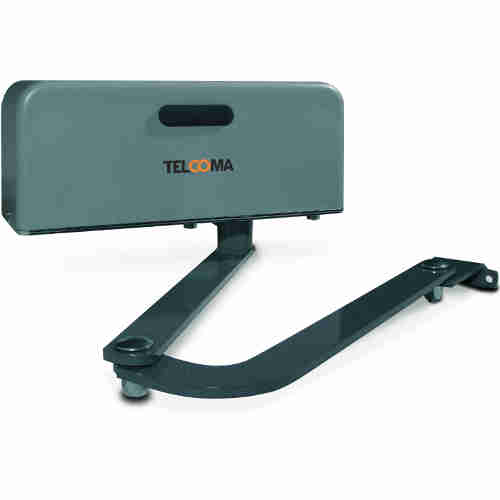

ARM24 / ARM 24  – ARTICULATED ARM FOR SWING GATES
Electromechanical 24 V actuators for swing gates up to 3 meters.
Ideal for very wide columns and where the articulated arms delivers a smooth and fluid movement.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable thanks to the sturdy mechanical parts and the powerful motor.

230 V irreversible electromechanical gearmotor, with painted articulated arm.
For leafs up to 3 m.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

TECHNICAL SPECIFICATIONS

Motor power supply                                      24 V
Max. motor current                                       5 A
Motor power                                                 120 W
Max torque                                                   385 N
Max gate weight                                            200 Kg
Rod stroke                                                   360 mm
Max. gate length                                           3000 mm
Max opening                                                 130°
Actuator speed                                             20 mm/s
Work cycles                                                 Intensive
Encoder                                                      YES
Mechanical limiters                                       YES
Termal protection                                         —
Grease lubricant                                          TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit
model                                                        T224W
Power supply                                              230 V
Max. current                                               1 A
Electronic slow down                                  YES
Compatible with Sun Power                         YES

GENERAL DATA KIT

Working temperature                                   -20 +55 °C
Protection level                                           IP 44
Weight                                                       22,5 Kg

ACCESSORIES ARM24

ELV
Vertical/horizontal electric lock 12 V.

SERIE OC2
2 channels plug in receiver.

T224/T624
Control unit for 1/2 motors 230 V, with encoder control, torque adjustment and slowing down.

BRLARM
Longer articulated arm for leafs up to 3,5 m.

BLA
Leaf stopper.
